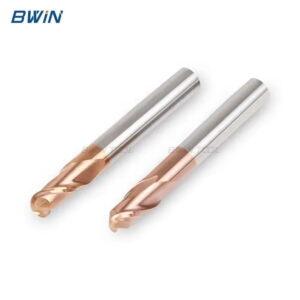

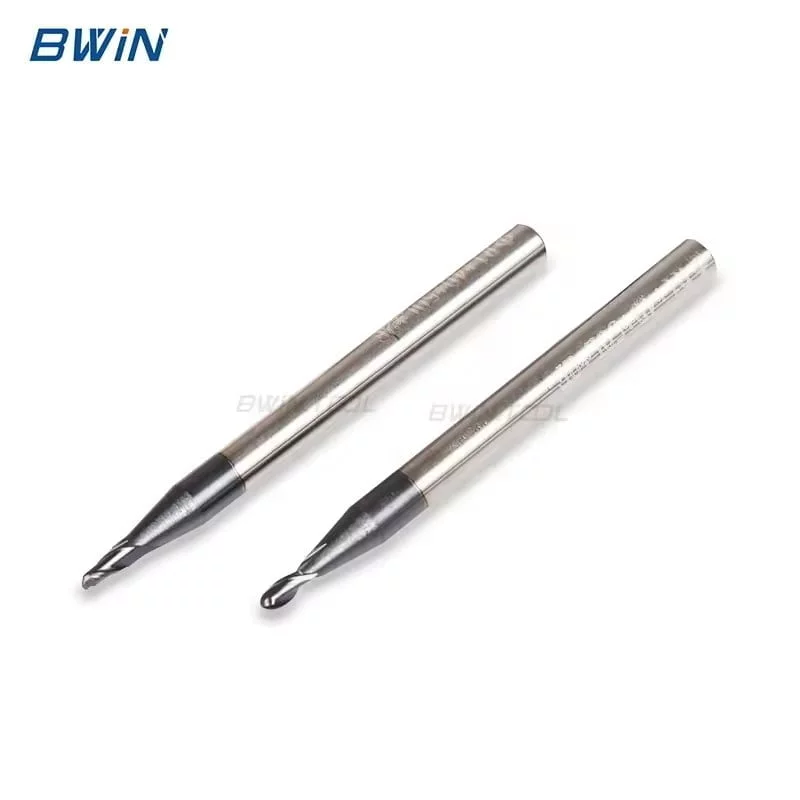

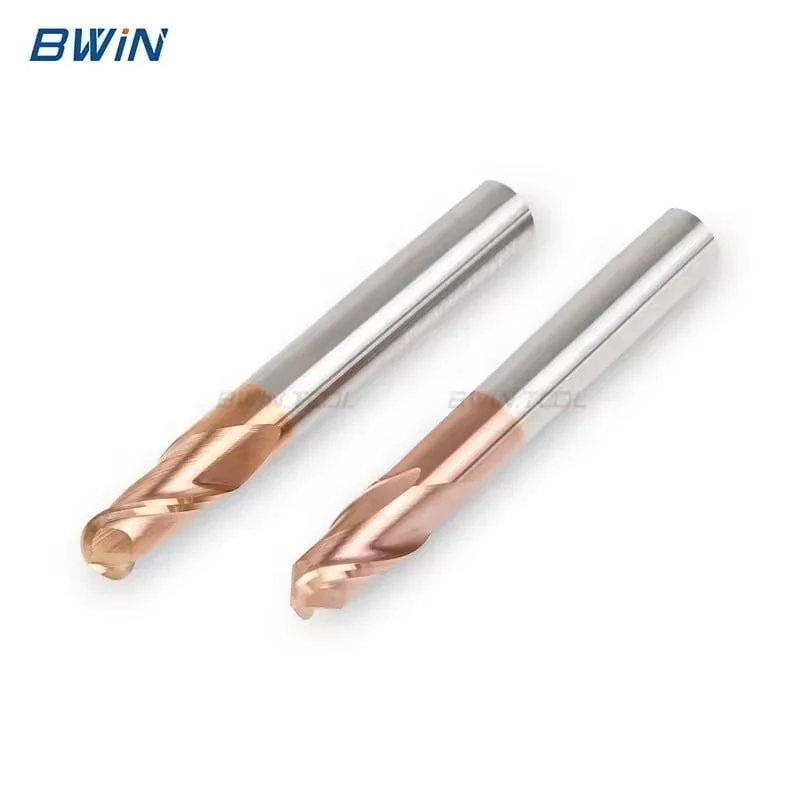

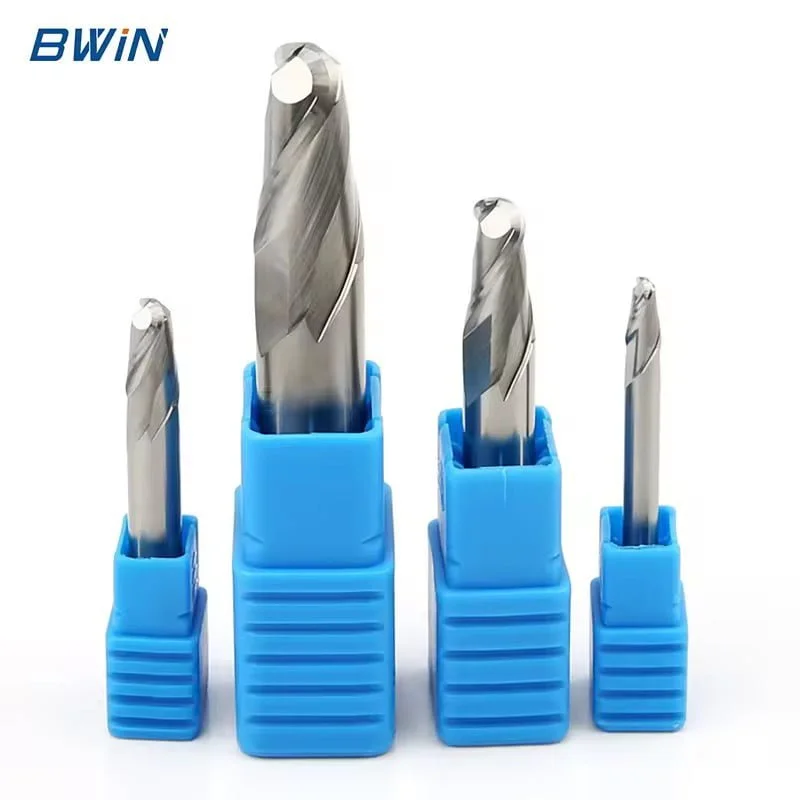

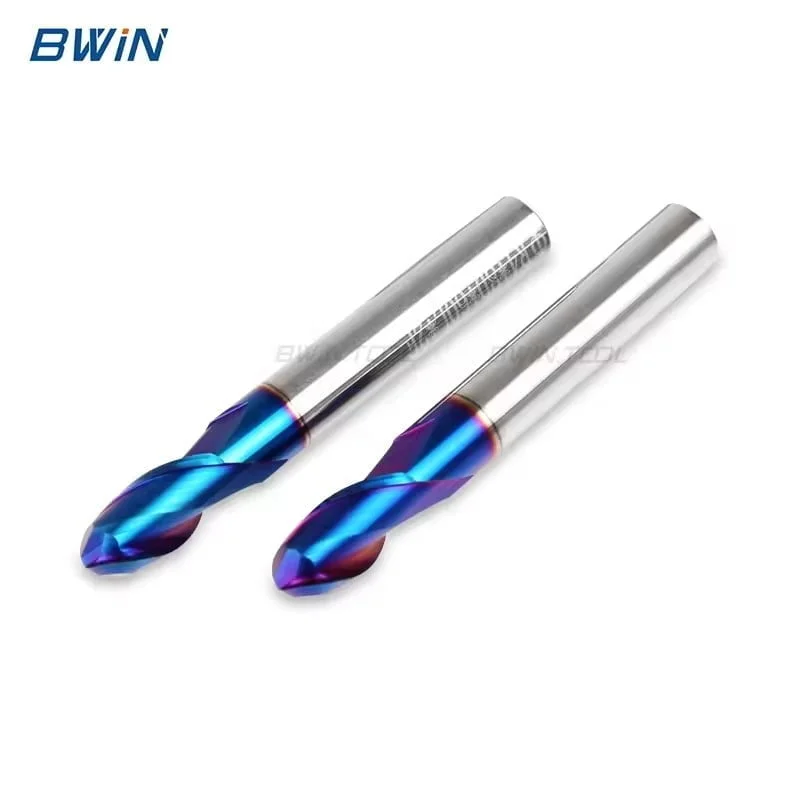

3mm 10mm 2 Flute CNC Tungsten Solid Carbide Long Shank Flat Ball Nose Spiral Aluminum Polish Cutter Endmill
|
Product name
|
2 Flute CNC Tungsten Solid Carbide Long Shank Ball Nose Spiral Aluminum Endmill
|
|
Material
|
100% raw material
|
|
Coating
|
Uncoated
|
|
Standard
|
ISO
|
|
HRC
|
HRC45
|
|
Workpiece material
|
Aluminum
|
1.Fully enables running at rough machining parameters, resulting in finish surface quality.
2.Excellent performance in machining titanium, stainless steel and high temperature alloys.
3.Suitable for aluminum.
2.Excellent performance in machining titanium, stainless steel and high temperature alloys.
3.Suitable for aluminum.
Product Parameters
|
Item Grade
|
HRC45
(YG10X )
|
HRC55
(YL10.2 & WF25)
|
HRC60
(Germany K44 &K40)
|
HRC65
(Sandvik H10F)
|
|
Details
|
Grain size 0.7um
Co10% Flexural strength 3320N/mm2 |
Grain size 0.6um
Co10% Flexural strength 4000N/mm2 |
Grain size 0.5um
Co12% Flexural strength 4300N/mm2 |
Grain size 0.5um
Co10% Flexural strength 4300N/mm2 |
|
Coating Classifying and Advantage
|
|||||
|
Item
|
Coating Type
|
AlTiN
|
TiAlN
|
TiSiN
|
NaCo
|
|
Characteristic
|
Hardness(HV)
|
3300
|
2800
|
4300
|
42(GPA)
|
|
Thickness(UM)
|
2.5-3
|
2.5-3
|
3
|
3
|
|
|
Oxidation Temp.(°C)
|
900
|
800
|
1000
|
1200
|
|
|
Friction Coefficient
|
0.35
|
0.3
|
0.25
|
0.4
|
|
|
Color
|
Black
|
Bronze
|
Bronze and gold
|
Blue
|
|
|
Advantages
|
High heat stability
|
Normally cutting
|
Suitable for heavy cutting, and high hardness cutting
|
For high precision cutting
|
|
|
Suitable for high speed, dry cutting |
Suitable for cutting mould steel,
stainless steel
|
Suitable for high hardness cutting, mould steel processing
|
|||
|
Most suitable for carbide cutting tools, turning insert
|
|||||
|
Specification
|
Radius(R)
|
Flute dia(Φ)
|
Flute length(C)
|
Shank Dia(D)
|
Overall Length(L)
|
|
R0.5x2Cx4Dx50L
|
R0.5
|
1.0
|
2
|
4
|
50
|
|
R0.75×1.5Cx4Dx50L
|
R0.75
|
1.5
|
3
|
4
|
50
|
|
R1.0x4Cx4Dx50L
|
R1.0
|
2.0
|
4
|
4
|
50
|
|
R1.25x5Cx4Dx50L
|
R1.25
|
2.5
|
5
|
4
|
50
|
|
R1.5x6Cx3Dx50L
|
R1.5
|
3.0
|
6
|
3
|
50
|
|
R1.5x6Cx4Dx50L
|
R1.5
|
3.0
|
6
|
4
|
50
|
|
R1.75x7Cx4Dx50L
|
R1.75
|
3.5
|
7
|
4
|
50
|
|
R2.0x8Cx4Dx50L
|
R2.0
|
4.0
|
8
|
4
|
50
|
|
R0.5x2Cx4Dx50L
|
R0.5
|
1.0
|
2
|
6
|
50
|
|
R0.75x3Cx6Dx50L
|
R0.75
|
1.5
|
3
|
6
|
50
|
|
R1.0x4Cx6Dx50L
|
R1.0
|
2.0
|
4
|
6
|
50
|
|
R1.25x5Cx6Dx50L
|
R1.25
|
2.5
|
5
|
6
|
50
|
|
R1.5x6Cx6Dx50L
|
R1.5
|
3.0
|
6
|
6
|
50
|
|
R1.75x7Cx6Dx50L
|
R1.75
|
3.5
|
7
|
6
|
50
|
|
R2.0x8Cx6Dx50L
|
R2.0
|
4.0
|
8
|
6
|
50
|
|
R2.25x9Cx6Dx50L
|
R2.25
|
4.5
|
9
|
6
|
50
|
|
R2.5x10Cx6Dx50L
|
R2.5
|
5.0
|
10
|
5
|
50
|
|
R2.5x10Cx6Dx50L
|
R2.5
|
5.0
|
10
|
6
|
50
|
|
R2.75x11Cx6Dx50L
|
R2.75
|
5.5
|
11
|
6
|
50
|
|
R3.0x12Cx6Dx50L
|
R3.0
|
6.0
|
12
|
6
|
50
|
|
R3.25x13Cx8Dx60L
|
R3.25
|
6.5
|
13
|
8
|
60
|
|
R3.5x14Cx8Dx60L
|
R3.5
|
7.0
|
14
|
8
|
60
|
|
R4.0x16Cx8Dx60L
|
R4.0
|
8.0
|
16
|
8
|
60
|
|
R4.5x18Cx10Dx75L
|
R4.5
|
9.0
|
18
|
10
|
75
|
|
R5.0x20Cx10Dx75L
|
R5.0
|
10
|
20
|
10
|
75
|
|
R5.5x22Cx12Dx75L
|
R5.5
|
11
|
22
|
12
|
75
|
|
R6.0x24Cx12Dx75L
|
R6.0
|
12
|
24
|
12
|
75
|
|
R6.5x26Cx14Dx50L
|
R6.5
|
13
|
26
|
14
|
100
|
|
R7.0x28Cx14Dx100L
|
R7.0
|
14
|
28
|
14
|
100
|
|
R7.5x30Cx14Dx100L
|
R7.5
|
15
|
30
|
14
|
100
|
|
R8.0x32Cx16Dx100L
|
R8.0
|
16
|
32
|
16
|
100
|
|
R8.5x34Cx16Dx100L
|
R8.5
|
17
|
34
|
16
|
100
|
|
R9.0x36Cx18Dx100L
|
R9.0
|
18
|
36
|
18
|
100
|
|
R9.5x38C204Dx100L
|
R9.5
|
19
|
38
|
20
|
100
|
|
R10.0x40Cx20Dx100L
|
R10.0
|
20
|
40
|
20
|
100
|
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
