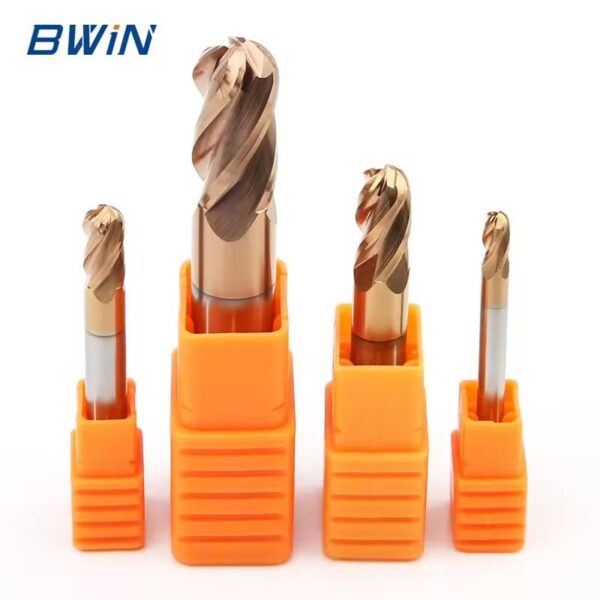

25mm 4 flute CNC carbide ball nose milling cutter bits 3.175mm 4mm 6mm 8mm tap end mill cutting tools for CNC machine
|
Product Name
|
Carbide ball nose end mill cutting tools for CNC machine
|
|
Material
|
Tungsten carbide
|
|
Flutes
|
2/4 Flutes
|
|
HRC
|
45/55/60/65 degree
|
|
Coating
|
AlTiN, TiAlN, TiSiN, AlTiSiN, TiN, Nano, or your requirements
|
|
Shank Diameter
|
1mm-20mm
|
|
Overall Length
|
50mm-150mm
|
|
Helix Angle
|
30 degree
|
|
Tolenrance
|
±0.01~0mm
|
|
Suitable for
|
Cast iron, Stainless steel, mould steel, carbon steel, titanium alloy, tool steel, heat-treated steel, wood, etc
|
|
Machine Type
|
CNC machine, Milling machine, etc
|
|
Usage
|
High speed cutting
|
|
All the specs. can be customized
|
|
1. High quality carbide rod:
All cutting materials are from international famous brands, high hardness, long tool life.
All cutting materials are from international famous brands, high hardness, long tool life.
|
Grade
|
HRC45
|
HRC55
|
HRC60
|
HRC65
|
|
Materials
|
YG10X
|
ZK30UF
|
ZK40SF
|
GU25UF
|
|
Details |
Grain size: 0.8um
Co: 10% Flexural strength: 3320N/mm2 |
Grain size: 0.6um
Co: 10% Flexural strength: 4000N/mm2 |
Grain size: 0.5um
Co: 12% Flexural strength 4300N/mm2 |
Grain size: 0.4um
Co: 12% Flexural strength: 4300N/mm2 |
2. Super coating
Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
|
Item
|
Color
|
Hardness (HV)
|
Thickness (UM)
|
Oxidation Temp.(℃)
|
Friction Coeffient
|
|
AlTiN
|
Black
|
3300
|
2.5-3
|
900
|
0.3
|
|
TiAlN
|
Violet
|
2800
|
2.5-3
|
800
|
0.3
|
|
TiSiN
|
Bronze
|
3600
|
3
|
1000
|
0.45
|
|
AlTiSiN
|
Blue
|
4000
|
4
|
1200
|
0.4
|
|
Nano
|
Blue
|
42(GPA)
|
3
|
1200
|
0.4
|
|
The key cutting products we selling as below:
|
|
|
◆ Carbide inserts ◆ Solid Carbide End Mills
◆ Turning Bar Tool ◆ Face Milling Tool |
◆ Drills & Reamers & Thread Cutters & Burrs
◆ Thread Tapper Tool ◆ CNC Chuck & Adapter ◆ Precision Tool Vise ◆ Other Accessories |
|
Specification
|
Flute radius(R)
|
Flute length(C)
|
Shank Dia.(L)
|
Flutes
|
|
R1.5*6*3*50
|
1.5
|
6
|
50
|
4
|
|
R1.5*6*3*75
|
1.5
|
6
|
75
|
4
|
|
R1.5*6*3*100
|
1.5
|
6
|
100
|
4
|
|
R0.5*2*4*50
|
0.5
|
2
|
50
|
4
|
|
R0.75*3*4*50
|
0.75
|
3
|
50
|
4
|
|
R1*4*4*50
|
1
|
4
|
50
|
4
|
|
R1.25*5*4*50
|
1.25
|
5
|
50
|
4
|
|
R1.5*6*4*50
|
1.5
|
6
|
50
|
4
|
|
R1.75*7*4*50
|
1.75
|
7
|
50
|
4
|
|
R2*8*4*50
|
2
|
8
|
50
|
4
|
|
R2*8*4*75
|
2
|
8
|
75
|
4
|
|
R2*8*4*100
|
2
|
8
|
100
|
4
|
|
R2.5*10*5*50
|
2.5
|
10
|
50
|
4
|
|
R2.5*10*5*75
|
2.5
|
10
|
75
|
4
|
|
R2.5*10*5*100
|
2.5
|
10
|
100
|
4
|
|
R2.5*10*6*50
|
2.5
|
10
|
50
|
4
|
|
R3*12*6*50
|
3
|
12
|
50
|
4
|
|
R3*12*6*75
|
3
|
12
|
75
|
4
|
|
R3*12*6*100
|
3
|
12
|
100
|
4
|
|
R3*12*6*150
|
3
|
12
|
150
|
4
|
|
R1.5*6*6*50
|
1.5
|
6
|
50
|
4
|
|
R3.5*14*8*60
|
3.5
|
14
|
60
|
4
|
|
R4*16*8*60
|
4
|
16
|
60
|
4
|
|
R4*16*8*75
|
4
|
16
|
75
|
4
|
|
R4*16*8*100
|
4
|
16
|
100
|
4
|
|
R4*16*8*150
|
4
|
16
|
150
|
4
|
|
R4.5*18*10*75
|
4.5
|
18
|
75
|
4
|
|
R5*20*10*75
|
5
|
20
|
150
|
4
|
|
R5*20*10*100
|
5
|
20
|
100
|
4
|
|
R5*20*10*150
|
5
|
20
|
150
|
4
|
|
R5.5*22*12*75
|
5.5
|
22
|
75
|
4
|
|
R6*24*12*75
|
6
|
24
|
75
|
4
|
|
R6*24*12*100
|
6
|
24
|
100
|
4
|
|
R6*24*12*150
|
6
|
24
|
150
|
4
|
|
R6.5*26*14*100
|
6.5
|
26
|
100
|
4
|
|
R7*28*14*80
|
7
|
28
|
80
|
4
|
|
R7*28*14*100
|
7
|
28
|
100
|
4
|
|
R7*28*14*150
|
7
|
28
|
150
|
4
|
|
R8*32*16*100
|
8
|
32
|
100
|
4
|
|
R8*32*16*150
|
8
|
32
|
150
|
4
|
|
R9*36*18*100
|
9
|
36
|
100
|
4
|
|
R9*36*18*150
|
9
|
36
|
150
|
4
|
|
R10*40*20*100
|
10
|
40
|
100
|
4
|
|
R10*40*20*150
|
10
|
40
|
150
|
4
|
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
