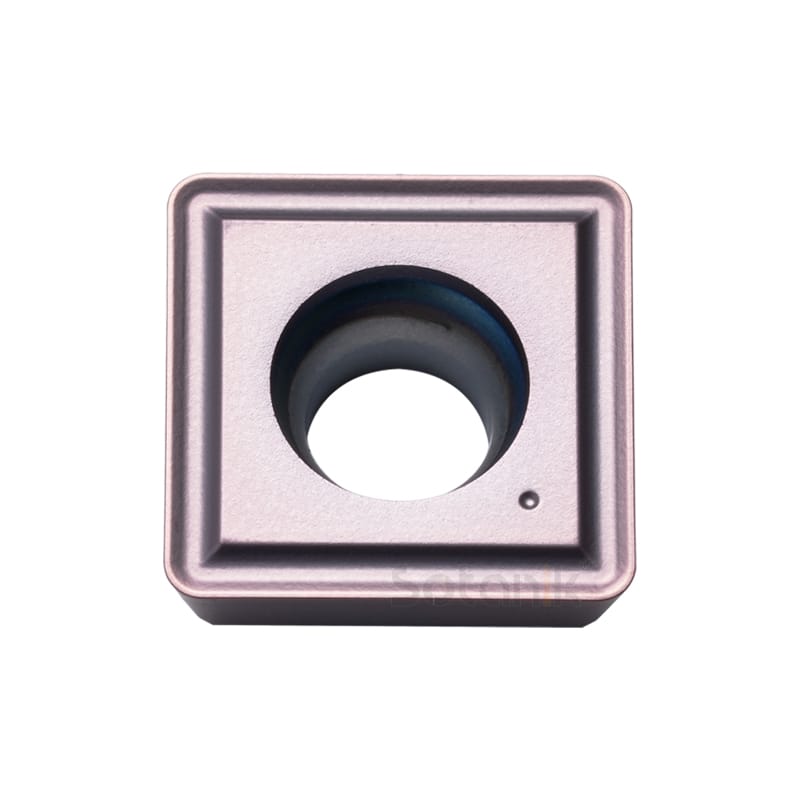

Drilling Insert, SPMG Insert

Carbide Inserts Category: U-drill Insert
Brand: Sotanik
Insert Style: SPMG
Insert Grade: HM2035, HT2030
Material: Solid carbide
Chip Breaker:
Insert Shape and Angle: 11°
Package Quantity: 10 pcs/box
Machining Parts Material: Stainless steel, steel

SPMG Insert: External turning, facing, profiling, and shoulder machining in CNC lathes.

‌

1. Shape‌

‌Square insert‌ with 90° corner angle, offering ‌4 cutting edges‌ for cost-effectiveness.

Ideal for ‌shoulder turning‌ and facing operations requiring precise 90° machining.

‌2. Clearance Angle

‌11° positive clearance angle‌: Reduces cutting forces and heat generation, enhancing tool life in medium to heavy-duty turning.

‌3. Tolerance Class

‌Medium tolerance (±0.13 mm / ±0.005″)‌: Balances precision and affordability for general-purpose applications.

‌4. Chipbreaker Design

‌Groove-style “G” chipbreaker‌: Controls chip formation in steel, stainless steel, and cast iron. Minimizes vibration and improves surface finish during medium-depth cuts.

Model	L	IC	S	d	R
SPMG 050204-TDG HM2035	5	5	2.38	2.25	0.4
SPMG 060204-TDG HM2035	6	6	2.38	2.61	0.4
SPMG 07T308-TDG HM2035	7.94	7.94	3.97	2.85	0.8
SPMG 090408-TDG HM2035	9.8	9.8	4.76	4.05	0.8
SPMG 110408-TDG HM2035	11.5	11.5	4.76	4.45	0.8
SPMG 140512-TDG HM2035	14.3	14.3	5.2	5.75	1.2
